Profile creation

Draw element profile on point cloud: allows you to draw a profile of the point cloud from one point to another or to several points. The red area indicates all the points of the point cloud included in this profile.

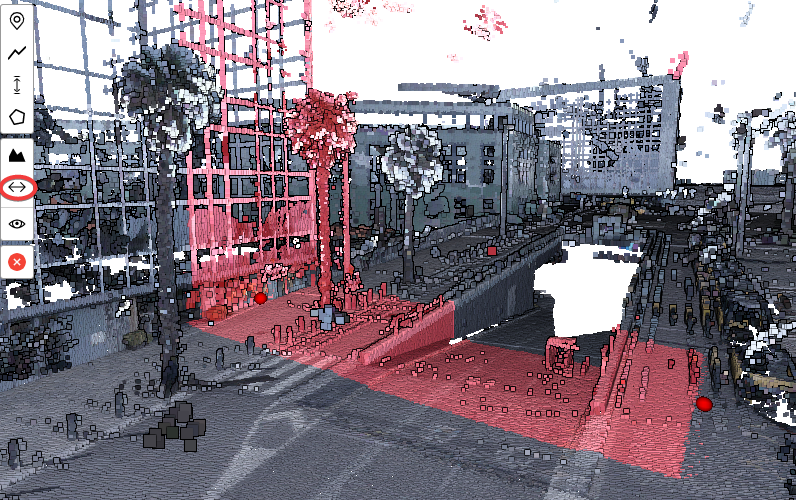

Set width of the drawn profile: this tool allows you to modify the width of the profile. It ranges from 0.5 m wide to 500 m wide. The wider the width, the wider the range of points obtained to create the profile.

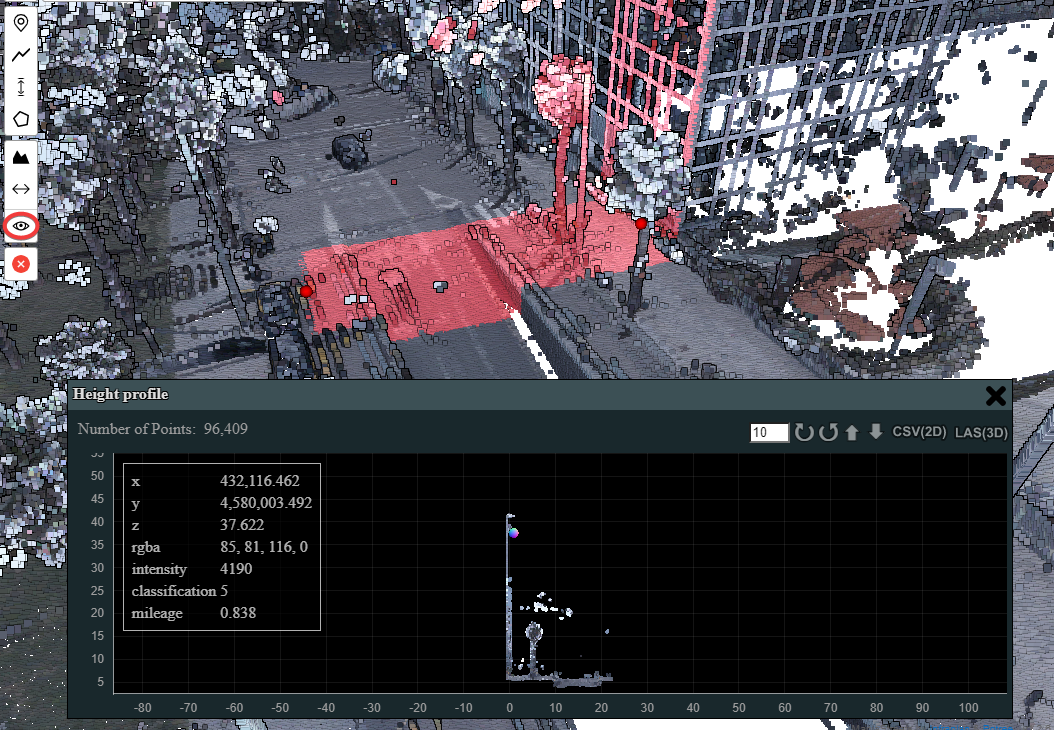

View the last profile drawn: the tool represented by an eye has the function of visualising the profile just drawn. In the pop-up window that appears you can see the profile with the points included in the red area.

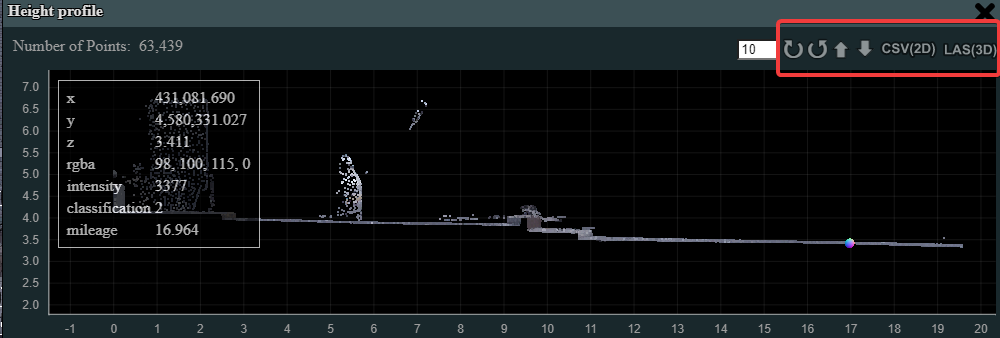

Other options appear in the window, such as rotating or moving the profile on the point cloud, or the options to download the profile in CSV(2D) or LAS(3D) format.

---

Delete profile: we can delete all the profiles drawn from the red cross option.
